CHENGDU FLUORINCHEM NEW MATERIAL CO., LTD.

PTFE MICRO POWDER JH-220

JH-220 type polytetrafluoroethylene  (PTFE) micro powder is a low-molecular-weight micron-sized polytetrafluoroethylene white powder prepared by a special method, with a molecular weight of 80,000~100,000. It not only basically maintains the  excellent characteristics of PTFE, but also has many unique properties, such as high crystallinity, good dispersion, and easy mixing and adding, so it is widely used in the blending modification of polymer materials.


Adding this product to engineering plastics can significantly improve the wear resistance,lubricity, non-stickiness and flame retardancy of the base material, and significantly improve the performance of the base material. JH-220 can be used between -190℃ to 300℃.


JH-220 is usually used as a processing aid, and can also be used alone as a lubricant. But it cannot  be used to replace high molecular weight PTFE suspension or dispersion resin for extrusion or  compression molding.

Get A Quote
Category: PTFE Micro Powder
  • Application of PTFE MICRO POWDER JH-220

    JH-220 is mainly used as a processing aid for various thermoplastic/thermosetting plastics, rubber and elastomers. It can reduce the friction coefficient of the material surface, improve the wear resistance of the material, prevent the surface of the material from being scratched, and at the same time perform internal lubrication and mold release. It can also improve the anti-adhesive and anti-friction properties of the resin, and avoid surface defects and fouling of injection molded parts. The amount of JH-220 added is generally between 5-20% (by weight).


    The plastic fields mainly used by JH-220 include nylon (PA), polyoxymethylene (POM), polycarbonate (PC), polyester, polyimide (PI),polyphenylene sulfide (PPS), polyether ether (PEEK), polysulfone, etc.

  • Specification of PTFE MICRO POWDER JH-220

    ItemUnitIndexTest Method

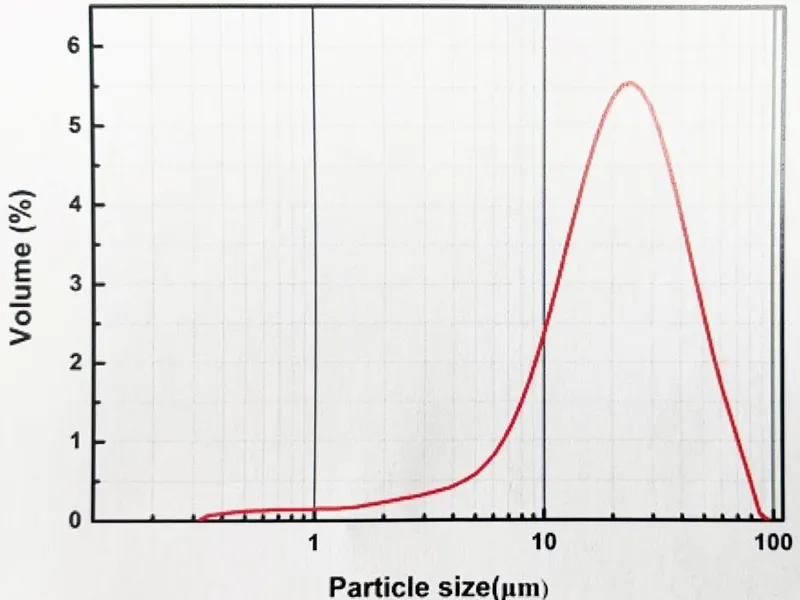

    D50(average particle size)μm17-23ASTM D4464
    D90(maximum particle size)μm≤53ASTM D4464
    Bulk Densityg/L300-500ASTM D4895
    Melting Point°C327ASTM D4591
    Specific Surface AreaM2/g1.0-2.1ASTM D5675
    Water Content (%)
    ≤0.03150°C/2h
    Specific Gravityg/cc2.1-2.2ASTM D5675
    Appearance
    WhitepowderVisual inspection



  • Packing & Transportation of PTFE MICRO POWDER JH-220

    JH-220 is packed in wooden barrels, net weight: 20kg/barrel, which is convenient for transportation and storage.


    This product is non-dangerous, please store it away from fire sources and strong oxidants. Do not smoke when operating the PTFE powder, to avoid some toxic gases produced by the burning of the PTFE powder.

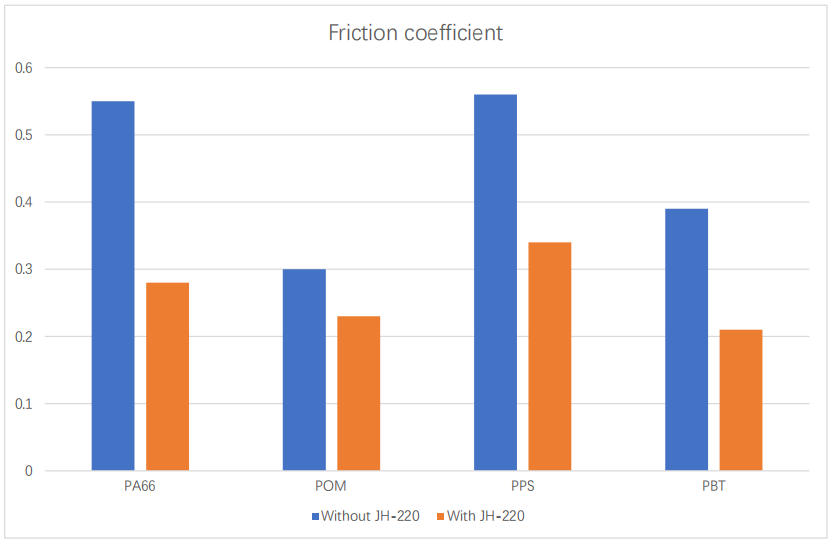

  • Variation of Friction Coefficient of Various Plastics + JH-220 (10wt%)
